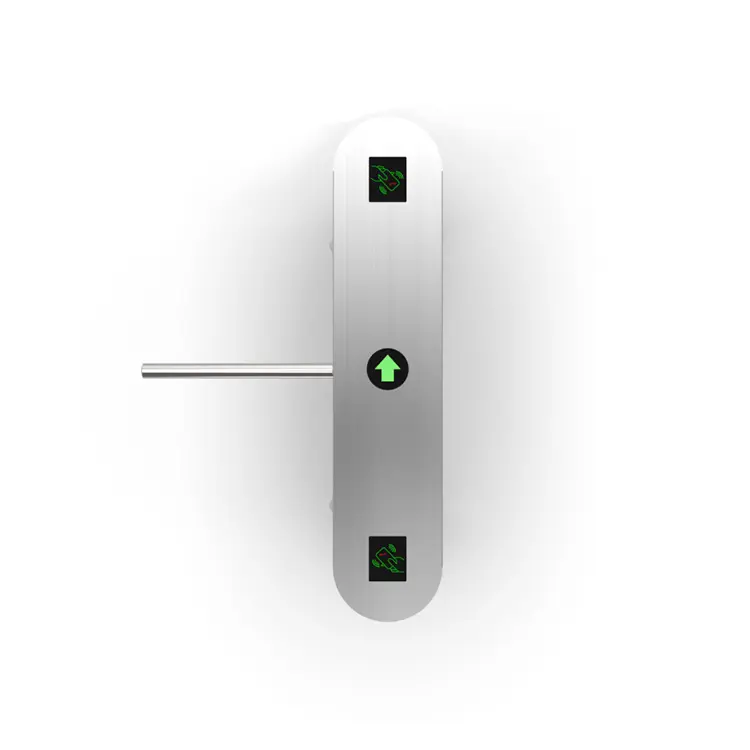

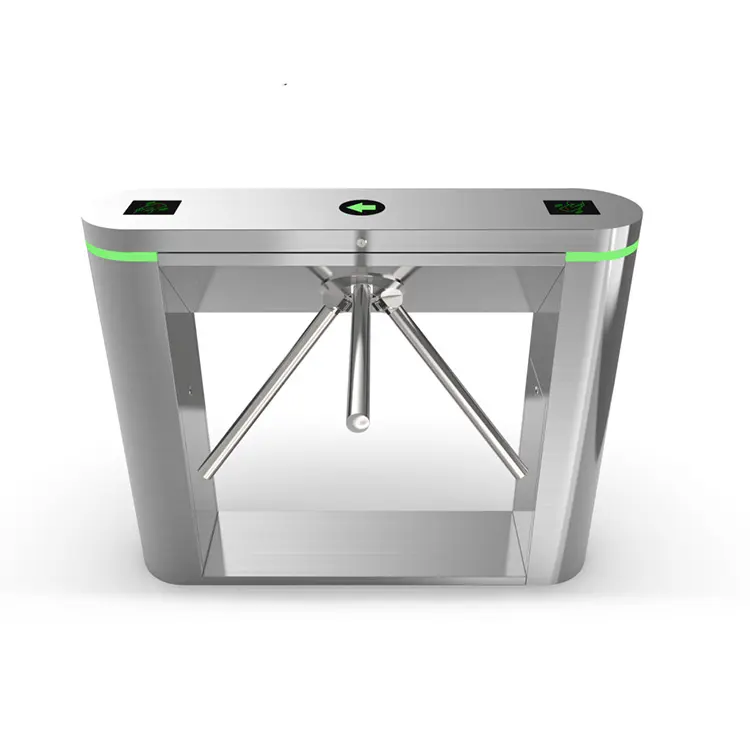

سوڕانەوەی سێ پایه بازنەیی بازنەیی تەخت

IM.S103

A safety-first tripod turnstile with fire-linked drop arm, intrusion detection, and smooth hydraulic-assisted operation—built for high-traffic security zones.

  • icon_mark

    خێرایی تێپەڕین:≤ 30 خەڵک/خولەک

  • icon_mark

    پانی بڕگە:پێوانەیی 550mm

  • icon_mark

    ڤۆڵتیی سەرچاوەی هێز:AC110~220V±10٪,50هرتز

  • icon_mark

    ماددە: ئەوان 304 پۆڵای دژە ژەنگ (1.2مم ئەستووری)

  • icon_mark

    ڕەهەندەکان:درێژی 1200* پانیی 260* بەرزی 980 ملم

  • بڕوانامەی CE
  • بڕوانامەی ISO
  • بڕوانامەی ROHS
  • بڕوانامەی FCC
  • بڕوانامەی CCC

ناسینەوەی دەموچاو

پیشاندەری LED

8 جووتەکانی دۆزەرەوەی ژێر سوور

کیو آر

The circular arc tripod turnstile offers a good and compact solution for access control within security areas of high traffic. It is highly efficient, compact and hydraulically assisted. Its round shape design makes it perfect for tight spaces like retail entrances, narrow corridors and small office layouts. Despite its compact size, the high-grade stainless steel shell has good structure and anti-corrosion and anti-impact properties.

The tripartite system of the turnstile makes it possible for pedestrians to pass through easily while maintaining the only one person through at a time concept. Unlike conventional models, it comes with anti-tailgating detection mechanisms that would prevent an unrestricted access. The system will automatically give visual and audio warnings if the system recognizes tailgating. This design has the advantage of adding security without slowing the flow of pedestrians.

The function of the fire linkage system is to automatically lower the arms in case of alarms or loss of power so that the evacuation can be done safely when there is an emergency. Administrators can set up the turnstile as one-way or two-way access according to the traffic demand.

تایبەتمەندیەکان

  • Small arc form design conserves space and improves looks.
  • Single entry passage is made possible through intelligent logic control.
  • Anti-tailgating anti-detection and alert system.
  • Quick evacuation is assisted by emergency drop-arm.
  • Combines with RFID, بایۆمەتری, کیو آر, and facial terminals.
  • Voice guidance and LED indicators simplify user directions.
  • Allows one and two-way passage structure.
  • SUS304 stainless steel structure that is resistant to corrosion.

The circular arc tripod turnstile also has a large quantity of verification system supports, which can be flexibly adapted to different industrial access control application scenes. The keyboards have LED direction pointers and voice guidance which direct users smoothly and minimize delays during high volume. Its modular internal design allows the technician to do the maintenance quickly and efficiently. The low-noise mechanical transmission also guarantees to have a quiet operation, so that the turnstile can be applied to the place such as library and office building.

  • وردەکاریەکانی بەرهەم
  • تایبەتمەندیەکان
  • تەکنیکی &تایبەتمەندیەکان
  • توانای خۆگونجاندن
  • جێبەجێ کردن
وردەکاریەکانی بەرهەم

ماددە و پێکهاتەی پلە پیشەسازی

  • ماددە: ئەوان 304 پۆڵای دژە ژەنگ (1.2مم ئەستووری)
  • بەرگری داخوران: ئایزۆی تێپەڕاند 9227 تاقیکردنەوەی سپرای خوێ (2,000 کاتژمێرەکان بێ ژەنگ)
  • مەودای پلەی گەرمی: -30°C بۆ +70°C (گونجانی ناوەوە/دەرەوە)
  • هەڵسەنگاندنی پاراستن: بەرگری ئاو و تۆز (کارکردنی جێگیر لە کاتی باران/تۆزی بەخوڕ)
  • دیزاین:بە زۆر پاڵ پێوەنانی قۆڵی دەروازەکە بە خۆتێهەڵقورتاندنی نایاسایی دادەنرێت. سیستەمەکە بە شێوەیەکی ئۆتۆماتیکی ئاگادارکردنەوەیەک لێدەدات و قۆڵی دەروازەکە دادەخات (وای لێدەکات نەجوڵێت).
تایبەتمەندیەکان

تایبەتمەندی تەکنیکی سەرەکی

ڕەهەندەکان درێژی 1200* پانیی 260* بەرزی 980 ملم
سیستەمی درایڤ نیمچە ئۆتۆماتیکی / ئامێری هایدرالیک
خێرایی تێپەڕین ≤ 30 خەڵک/خولەک
پانی بڕگە پێوانەیی 550mm
ڤۆڵتیی سەرچاوەی هێز AC110~220V±10٪,50هرتز
یەکخستن پشتیوانی RFID/ناسینەوەی دەموچاو/سکانکردنی QR /RS485/نێوانبەستەکانی گواستنەوە دەکات
تەکنیکی &تایبەتمەندیەکان

تایبەتمەندیەکانی تەکنیکی و ئاسایش

سیستەمی کۆنترۆڵی چوونە ژورەوەی زیرەک

تایبەتمەندیەکانی سەلامەتی:

کرداری بەردانەوەی ئۆتۆماتیکی باڵی بەردان:

کاتێک کارەبا دەبڕدرێت, قۆڵی بەربەست کە بە شێوەیەکی ئاسایی ڕێڕەو دەگرێت بە شێوەیەکی ئۆتۆماتیکی دەکەوێت, ئاسانکردنی چۆڵکردنی قەرەباڵغی و گوێڕایەڵی پێداویستیەکانی سەلامەتی ئاگر.

کرداری دژە-بەریەککەوتن:

کاتێک قۆڵی دەروازەکە لە دۆخی داخراودایە, ناتوانرێت بە هێزی دەرەکی پاڵی پێوە بنێت و دەتوانێت بەرگەی بەریەککەوتن بگرێت لە مەودای سەلامەت.

دەروازەی بەربەستی جۆلانەی پیادە لە دەرەوە
کۆنتڕۆڵی چوونە ژورەوەی دەروازەی هەستەوەری بەرز
سوڕانەوەی ڕەسەنایەتی سەلماندنی فرە-شێواز
توانای خۆگونجاندن

توانای گونجاندنی بازاڕی جیهانی

  • ڤۆڵتیە:100-240V داخڵکردنی مەودای فراوان (گونجانی تۆڕی جیهانی)
  • پاڵپشتی زمان: 24/7 خزمەتی ئینگلیزی
  • بڕوانامە:کە,ئێف سی سی
جێبەجێ کردن

سیناریۆکانی بەرجەستەکراو

  • ئاسایشی کۆمپانیا : وێستگە / ناوچەی دیمەنی سروشتی
  • بۆشاییە بازرگانییەکان: یاریگاکان / شوێنی بیناسازی
  • شارە زیرەکەکان: کۆمەڵگا
دابینکەری دەروازەی بەربەستی جۆلانە
سوڕانەوەی دەروازە بۆ دامەزراندنی ئۆفیسەکە
دەروازەی بەربەستی جۆلانەی بازرگانی
