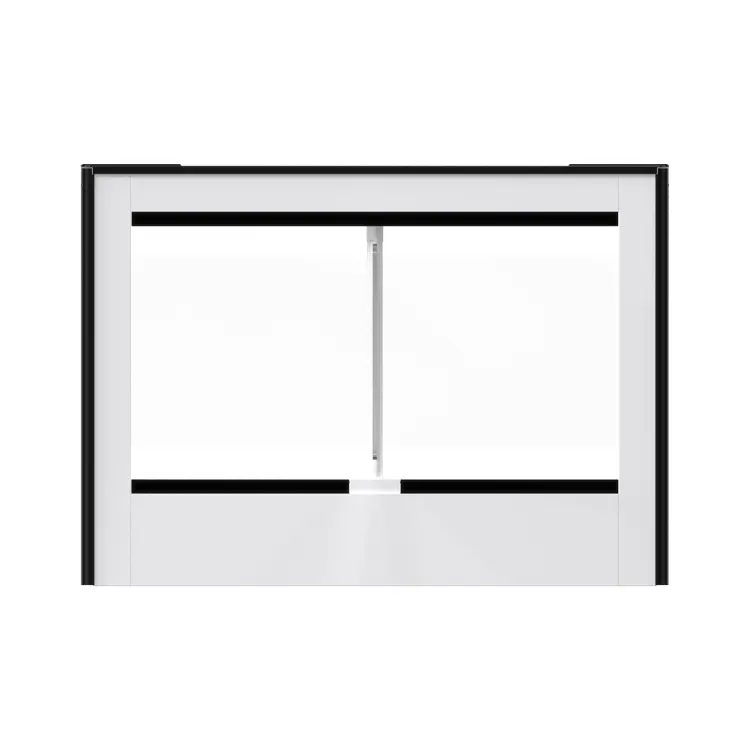

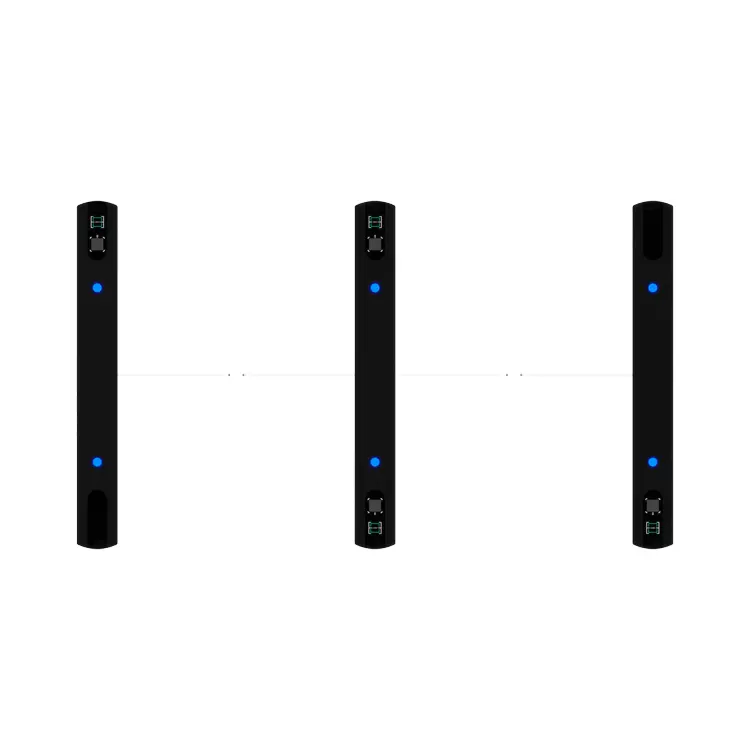

بەربەستی سوڕانەوەی بزوێنەری بێ فڵچە
IM.XS.02
The IM.XS.02 Brushless Motor Swing Barrier is a high-end access control device that integrates high-precision brushless motor drive and intelligent turnstile software. Adopting advanced brushless DC motor technology and combined with independently developed dedicated turnstile management software, this product achieves efficient control, accurate identification and intelligent management of access passage. It is suitable for various places requiring personnel access management such as office buildings, وێستگەکانی میترۆ, scenic spots, کارگە, and smart communities. With significant advantages including fast passage speed, strong stability, low energy consumption and long service life, it provides users with a safe, convenient and intelligent access management solution.
-
پانی کەناڵ : ≤1110mm
-
Sensors : 6 pairs of IR sensors
-
خێرایی هاتوچۆ : ≤30 people/minute
-
ڕەهەندەکان (تایبەتمەندی قوبووڵ کرا) : 1400* 166* 1000مم
-
ماددە : the box corrosion-resistant SPCC 1.0mm, top cover 5mm thick aluminum alloy oxidation, column 3mm thick aluminum alloy oxidation
ناسینەوەی دەموچاو
پیشاندەری LED
8 جووتەکانی دۆزەرەوەی ژێر سوور
کیو آر
The بەربەستی سوڕانەوەی بزوێنەری بێ فڵچە is a premium pedestrian access control system designed for commercial complexes, smart buildings, and transportation terminals. Engineered with a DC brushless motor and reinforced structure, it delivers fast, quiet, and reliable operation for daily high-frequency use.
This model supports a channel width of up to 1110 مم, making it accessible for wheelchairs, carts, and large luggage. It features 6 جووتەکانی هەستەوەری ژێر سوور, enabling accurate detection of direction, دواوەی ڕێگا, and intrusions. These sensors enhance user safety and ensure only authorized individuals gain entry.
The gate’s housing is made from 1.0 mm thick SPCC steel, offering corrosion resistance and structural durability. The top cover uses 5 mm oxidized aluminum alloy, while the columns are reinforced with 3 mm thick aluminum alloy, providing a lightweight yet sturdy frame that resists wear and deformation.
Thanks to its DC brushless motor, the swing arm operates with a response time of 0.3 بۆ 0.6 چرکە, maintaining smooth motion under continuous use. The design minimizes mechanical friction and extends service life without sacrificing performance.
سوودەکان
- Supports up to 1110 mm wide channel for wheelchair and baggage access
- مجهز بە 6 pairs of infrared sensors for precise tailgating and intrusion detection
- DC brushless motor offers stable performance, low noise, and long operational lifespan
- Swing arm opens in 0.3–0.6 seconds for efficient flow control during peak hours
- Durable structure with SPCC steel housing and oxidized aluminum alloy top cover and columns
- High traffic capacity of up to 30 persons per minute without performance loss
- Soft start and stop ensure smooth movement and protect mechanical components
- Seamless integration with RFID, بایۆمەتری, کۆدی QR, وە سیستەمی ناسینەوەی دەموچاو
- Fail-safe mechanism activates automatic gate opening during power failure or fire alarm
- Customizable dimensions and control logic to meet diverse site requirements
This swing barrier integrates easily with most access control systems via RS485, ویگاند, یان TCP/IP interfaces. It supports a wide range of authentication methods, لەوانە RFID cards, ناسینەوەی دەموچاو, پەنجەمۆر, and QR codes, making it suitable for modern, automated entry scenarios.
Whether installed in a corporate headquarters or a busy transit station, ئەو بەربەستی سوڕانەوەی بزوێنەری بێ فڵچە ensures security, accessibility, and smooth user experience with minimal maintenance requirements.
- وردەکاریەکانی بەرهەم
- تایبەتمەندیەکان
- دامەزراندن و بەکارهێنان
- توانای خۆگونجاندن
- پرسیاره باوەکان
وردەکاریەکانی بەرهەم
تایبەتمەندیە کردارییەکان
- Wide passage width up to 1110 مم, supporting wheelchair and cargo access
- Integrated with 6 pairs of infrared sensors for reliable anti-tailgating detection
- High-precision brushless DC motor ensures silent, stable, and efficient movement
- Durable top cover made of 5 mm aluminum alloy for impact resistance
- Main housing made from corrosion-resistant SPCC steel for long-term durability
- Columns reinforced with 3 mm aluminum alloy oxidation for structural strength
- Bi-directional swing arms support fast entry and exit with accurate logic control
- Fail-safe mechanism triggers automatic arm opening during power loss or fire alarms
- Compatible with multi-authentication: RFID, face, کیو آر, and fingerprint systems
- Customizable dimensions and access logic to match project-specific needs
تایبەتمەندیەکان
تایبەتمەندی تەکنیکی سەرەکی
| پارامیتەر | تایبەتمەندی |
| Motor Type | DC Brushless Motor |
| پانی بڕگە | ≤ 1110 مم |
| خێرایی کردنەوە | 0.3–0.6 seconds |
| خێرایی هاتوچۆ | ≤ 30 خەڵک/خولەک |
| Material – Housing | SPCC 1.0 مم, corrosion-resistant |
| Material – Top Cover | داڕشتەی ئەلەمنیۆم, 5 مم ئەستوور, oxidized |
| Material – Column | داڕشتەی ئەلەمنیۆم, 3 مم ئەستوور, oxidized |
| هەستەوەرەکانی ژێر سوور | 6 جووتەکان (12 sensors total) |
| Control Interface | RS485 / ویگاند / TCP/IP |
| Authentication Options | RFID, Biometric, QR Code, PIN |
| سەرچاوەی هێز | ئەی سی 100–240 ڤی, 50/60هرتز |
| ڤۆڵتیی کارکردن | دی سی 24 ڤی |
| بەکارهێنانی هێز | ≤ 60W |
| پاراستن لە چوونە ژوورەوە | IP54 (indoor / semi-outdoor use) |
| پلەی گەرمی کارپێکردن | -20°C بۆ +60°C |
| ڕەهەندەکان | 1400 × 166 × 1000 مم (توانای دەستکاریکردن هەیە) |
| Mean Cycles Between Failure | ≥ 10 ملیۆن سووڕ |
دامەزراندن و بەکارهێنان
دامەزراندن و بەکارهێنان
Installation of the Brushless Motor Swing Barrier should be performed by qualified personnel following the site’s electrical and structural requirements. Begin by preparing a level and reinforced floor surface that can support the weight and vibration of the equipment. Ensure that all pre-embedded conduits for power and communication cables (RS485, TCP/IP, ویگاند) are in place according to the wiring diagram.
Position the swing barrier units accurately based on the designed passage width and alignment. Use expansion bolts to securely anchor the units to the floor. Once mounted, connect power lines (ئەی سی 100–240 ڤی) and low-voltage DC components (24V) to their respective terminals. Interface connections to access control systems, fire alarms, and emergency controls should also be completed at this stage.
After electrical wiring, proceed with configuration. Test the motor operation, sensor alignment, and swing arm motion to ensure smooth opening and closing cycles. Verify the response speed, sensor triggering accuracy, and LED indicator functions. Use the control panel or software interface to set opening logic, direction control, and authentication settings (RFID, بایۆمەتری, کیو آر, هتد.).
Use
During daily use, the gate remains in standby mode until it receives a valid signal from the connected access system. Once authenticated, the swing arm opens in the programmed direction, allowing a single user to pass. The gate then automatically resets and prepares for the next entry.
Infrared sensors actively monitor for tailgating, چوونەژوورەوەی پێچەوانە, or obstruction. If irregular activity is detected, the system will lock the arm or trigger an alert, depending on its configured response.
In the event of a power failure or fire alarm, the barrier automatically enters fail-safe mode, opening the arms to allow free passage for evacuation. After power is restored, the system reinitializes and resumes normal operation.
For maintenance, regularly inspect the motor, swing arm movement, and sensor cleanliness. Avoid placing heavy objects near the gate or exposing it to corrosive environments. Firmware or access control updates should be carried out through authorized service tools.
With proper installation and usage, the Brushless Motor Swing Barrier delivers stable, پارێزراو, and efficient access management for a wide range of facilities.
توانای خۆگونجاندن
توانای گونجاندنی بازاڕی جیهانی
- ڤۆڵتیە: 100-240V داخڵکردنی مەودای فراوان (گونجانی تۆڕی جیهانی)
- پاڵپشتی زمان: 24/7 خزمەتی ئینگلیزی
- بڕوانامە: کە, ئێف سی سی, ئایزۆ
پرسیاره باوەکان
پرسیاره باوەکان
1. What are the advantages of a brushless motor?
It runs quieter, lasts longer, and requires less maintenance compared to brushed motors, especially in high-usage environments.
2. Can the gate be used in semi-outdoor settings?
بەڵێ, it has an IP54 rating and is suitable for covered outdoor or sheltered semi-outdoor locations.
3. How is tailgating detected?
Infrared sensors track each person passing through. Unauthorized following triggers alarms or access denial.
4. What happens in case of a power outage?
The system enters fail-safe mode, and the swing arms open automatically to allow free passage for emergency evacuation.
5. Is it compatible with my existing access system?
بەڵێ, it supports standard RS485, ویگاند, and TCP/IP interfaces for integration with most access control platforms.
