Bidirectional Office Access Control Turnstile for Peak-Hour Traffic
2026-08-25
An Office Access Control Turnstile rarely fails because the barrier cannot move fast enough. More often, queues develop because credential response, ئاڕاستەی هێڵ, pedestrian behavior and sensor logic are not matched to the building’s real peak flow.
لە پیاوی ئاسنین زیرەک, we therefore treat a turnstile as part of a complete pedestrian-control system—not as an isolated motorized cabinet.
Design for the 15-Minute Surge, Not Daily Headcount
A building may have 1,000 employees but receive 400 of them between 8:45 و 9:00. During the same period, visitors and night-shift staff may be leaving. Sizing an Office Access Control Turnstile from total occupancy overlooks this directional conflict.
Effective capacity depends on four delays:
•Credential reading and database response
•Barrier opening, dwell and closing time
•User hesitation, bags and closely spaced pedestrians
•Conflicting entry and exit requests
The required number of lanes should be calculated from measured five- or fifteen-minute flow:
N=⌈ Qpeak/Cکاریگەر⌉
لێرە, effective capacity is the rated throughput after authentication, ڕەفتار, directional-conflict and equipment-availability losses.
How Bidirectional Passage Is Controlled
A bidirectional Office Access Control Turnstile first receives authorization from an RFID reader, QR scanner or biometric terminal. The controller confirms the requested direction and checks the infrared detection zones. A servo drive then opens the barrier, while the sensors track entry, lane occupancy and exit.

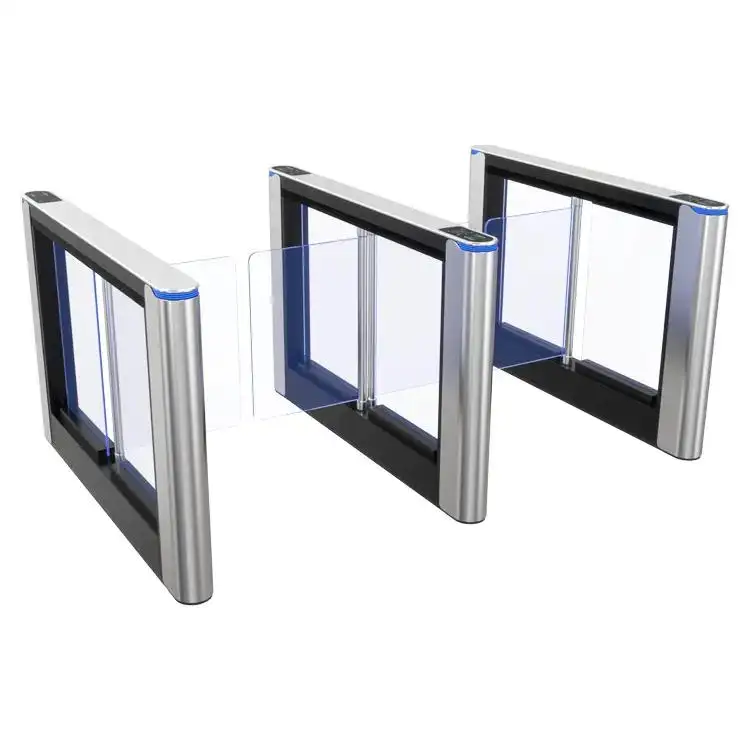

هی ئێمە IM.XS.05 bidirectional swing gate uses a 24–36 VDC servo drive and supports one-way, two-way and free-passage modes. Its controller provides:
•Anti-tailgating and reverse-entry detection
•Audio-visual intrusion alarms
•Obstruction detection with a stated 0.1-second rebound
•Adjustable authorization timeout, with a 10-second default
•Power-off opening and fire-alarm release
The 0.1-second value describes the obstruction response, not the complete opening or closing cycle. This distinction matters when comparing safety data.
Memory mode can store consecutive valid authorizations and improve peak flow. هەرچۆنێک بێت, it should only be enabled when the sensor logic can maintain the relationship between authorized users and actual passages.
Compare Traffic Strategies Before Selecting Hardware
An Office Access Control Turnstile should be configured around the traffic pattern and security level.
| بڕیار | Available approaches | Suitable condition | Main trade-off |
| Direction control | Fixed bidirectional, scheduled one-way, dynamic switching | جێگیر, predictable or changing flow | Flexibility versus control complexity |
| ڕەسەنایەتی سەلماندن | RFID, کیو آر, face or mobile credential | کارمەندان, visitors or mixed users | خێرایی, privacy and offline availability |
| پانی بڕگە | 600 mm standard or 900–1100 mm wide lane | کارمەندان, کورسی کەمئەندام, carts or luggage | Space use versus accessibility |
| داپۆشینی هەستەوەر | Six-pair standard or up to ten pairs | Normal or high-security traffic | Detection resolution versus cost |
| Failure mode | Fail-open, UPS-supported or fire-priority release | General office or controlled zone | Egress versus security continuity |
Fixed bidirectional operation is simple, but users approaching from both sides may hesitate or compete for the same lane. Scheduled direction control often works better when morning entry and evening exit patterns are predictable. Dynamic switching provides more flexibility but requires reliable lane-detection and priority logic.
Convert 45 Persons per Minute into Real Capacity
The IM.XS.05 is rated at up to 45 persons per minute with memory mode available. This corresponds to about 1.33 seconds per person under ideal continuous conditions. It should not be treated as guaranteed site capacity.
For a realistic calculation, دووپاتکردنەوە:
•Whether the rating includes RFID, QR or face verification
•Whether users travel in one direction or both
•Whether memory mode is active
•The selected barrier width and opening cycle
•The expected percentage of rejected or repeated credentials
The Office Access Control Turnstile offers a customizable 600–1100 mm passage. A standard lane can handle routine employee traffic, while a wider lane can support wheelchairs, deliveries and luggage. Increasing width also increases barrier-leaf length and inertia, so motor load, opening time and sensor positions must be reviewed together.
The standard sensing platform uses six infrared pairs and can be configured with up to ten. لە پیاوی ئاسنین زیرەک, the final sensor count and detection-zone layout should be frozen in the approved lane drawing and bill of materials rather than assumed from a generic brochure.
Manufacturing Details That Affect Long-Term Alignment
The IM.XS.05 cabinet measures 1500 × 120 × 980 مم. Its narrow 120 mm body requires controlled forming and assembly to keep the servo, bearing axis and barrier leaf aligned.
Our construction uses:
• A 1.2 mm corrosion-resistant electrolytic-plate cabinet with baked coating
•An 8 mm anodized aluminum-alloy top cover
•A 3 mm anodized aluminum-alloy column
•A 10 mm acrylic or aluminum-alloy swing barrier
These dimensions are functional. The top cover must resist repeated contact and support reader integration, while the column and internal steel frame maintain drive alignment during continuous cycling.
IRONMAN Intelligent applies rolling, مۆرکردن, لکاندن, ڕووپۆشکردن, assembly and final functional testing within its manufacturing workflow. Inspection extends from incoming materials to finished-gate operation, including barrier movement, وەڵامدانەوەی هەستەوەر, زەنگەکان, communication and emergency release.
Our IM.XS.05 offers operation from −35°C to +75°C and ISO 9227 salt-spray performance of 2,000 hours without rust. Project approval should still review the exact test method, coating specimen and acceptance criterion; salt-spray duration cannot be directly converted into outdoor service years.
Integrate the Gate Without Creating Another Bottleneck
The Office Access Control Turnstile has RFID, ناسینەوەی دەموچاو, کیو آر, RS232, RS485 and relay compatible interfaces. Integrators must verify details about communication protocol and event feedback for visitor management, HR, CCTV, بەرزکەرەوە, and fire systems before system deployment.
The reader must be installed before the swing zone with an adequate queuing area. Maintenance becomes needed for:
•Aligning and cleaning the infrared windows
•Checking the barrier leaf and fasteners
•Confirming the proper operation of the servo and verifying if any abnormal operation vibrations exist
•Executing the alarm tests, verifying power loses, and conducting the fire release
•Recovering the credentials and communication
•Confirm compliance through documentation as well as tests
بۆ پڕۆژه ئه روپییه کان, لە 17352:2022 is a valid safety standard for powered pedestrian access and control systems. In addition to verifying safety-specific configuration CE and EMC documentation, buyers must verify the safety-related electrical and RoHS documents.
Water- and dust-resistant construction is not a substitute for an IP rating tested under IEC 60529. Facial authentication also requires review of biometric storage, retention and applicable privacy rules.
A final Office Access Control Turnstile FAT and SAT should simulate peak traffic, opposing requests, دواوەی ڕێگا, carried bags, obstruction, invalid credentials, power loss and fire-alarm release.
Share your peak-flow data, floor plan, authentication method and destination market with IRONMAN Intelligent. We can use them to develop a bidirectional lane configuration and a project-specific acceptance checklist.
پرسیارە متداولەکان
پرسیار 1. Does IRONMAN Intelligent offer turnstiles for high-traffic offices?
بەڵێ. We manufacture pedestrian access-control equipment for office buildings, commercial complexes and other managed entrances. Our IM.XS.05 bidirectional swing gate is rated for up to 45 persons per minute under specified operating conditions.
Q2. Can IRONMAN Intelligent customize the passage width?
بەڵێ. The IM.XS.05 supports a customizable passage width from 600 بۆ 1100 مم. This allows projects to combine standard employee lanes with wider lanes for wheelchairs, کەلوپەل, carts or deliveries.
Q3. Which authentication methods can be integrated?
Our Office Access Control Turnstile can integrate with RFID readers, face-recognition terminals and QR scanners. The final authentication method should be selected according to employee flow, بەڕێوەبردنی سەردانکەران, privacy and offline-operation requirements.
پرسیار 4. How many infrared sensors does the IM.XS.05 بەکارهێنان?
The standard configuration uses six pairs of infrared sensors and can be increased to ten pairs. The final quantity and detection-zone layout are confirmed according to lane width, safety requirements and anti-tailgating performance.
Q5. What safety functions are available?
The IM.XS.05 supports obstruction detection with a stated 0.1-second rebound, anti-pinch logic, دژە دواوە, reverse-entry detection, dwelling detection and audio-visual alarms. These functions should be tested again after installation.
